ISOLATION & K-RATED TRANSFORMERS
Engineered for Clean Power, Harmonic Mitigation & Critical Load Protection
Designed to eliminate electrical noise, reduce harmonics and improve power quality for data centers, healthcare, industrial automation and mission-critical applications.
Electrical Isolation
Harmonic Mitigation
Low Leakage Current
High Efficiency
Continuous Duty Operation
WHY ISOLATION TRANSFORMERS?
Complete Protection for Sensitive Equipment
Isolation transformers create complete electrical separation
between source and load while eliminating noise and ground
loop interference.
- Eliminates electrical noise and disturbances
- K-Rated design mitigates harmonic stress common in data centers and IT environments
- Protects sensitive and critical equipment
- Energy-efficient low-loss design reduces operating costs
- Improves reliability and power quality
WHY ISOLATION TRANSFORMERS?
Product Variants

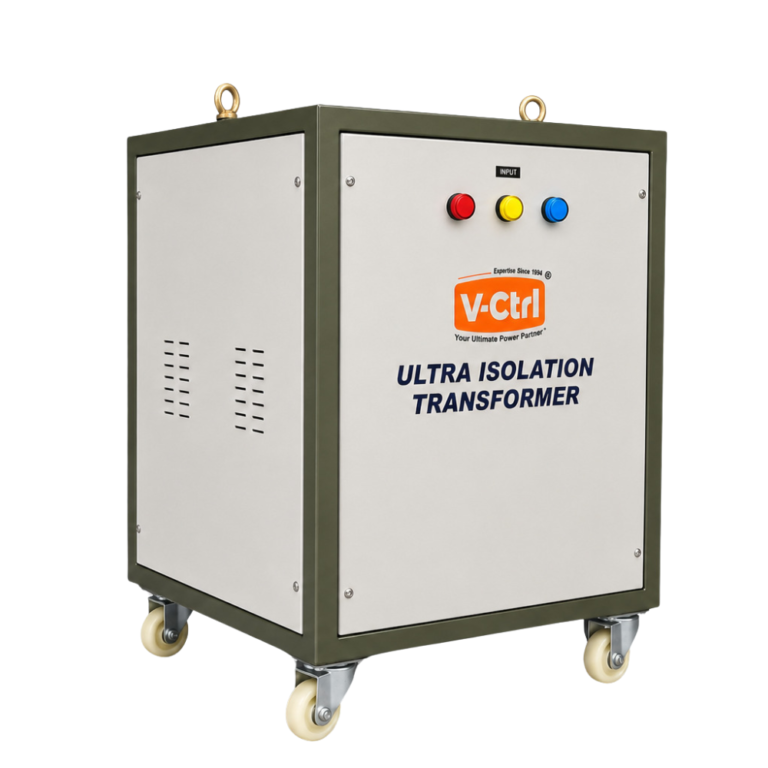

Isolation Transformers
- Electrical isolation
- Noise suppression
- Ground loop elimination
- Clean power for sensitive equipment

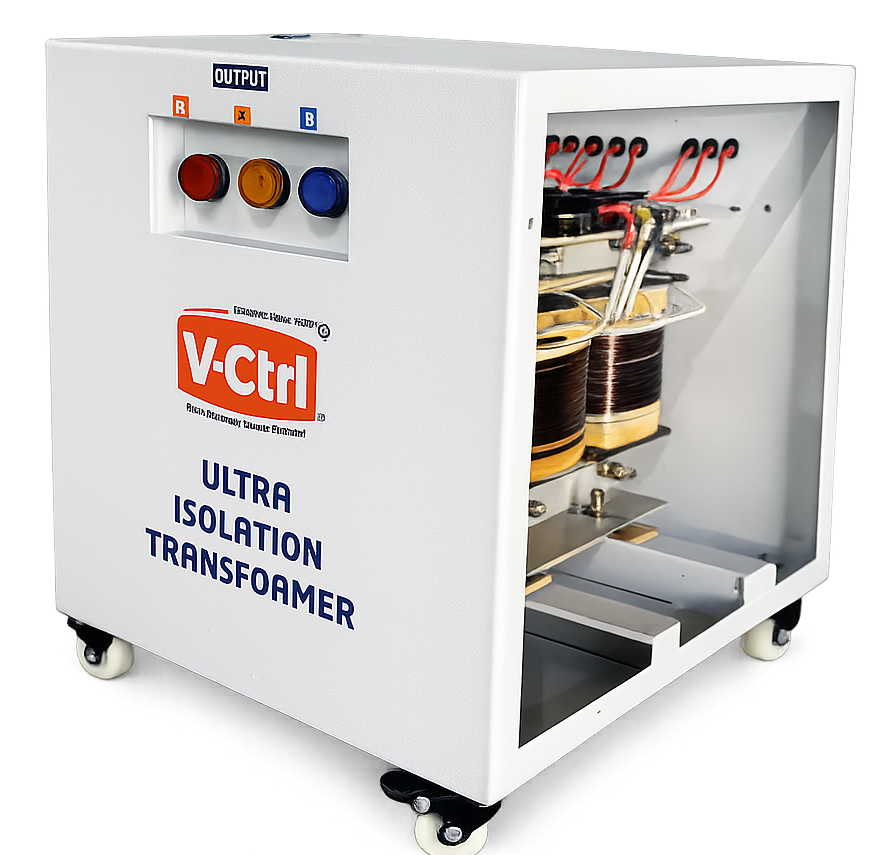

K-Rated Transformers
- Handles harmonic currents from non-linear loads
- Supports UPS aystems
- Data center ready
- Reduces overheating and losses
Key Benefits
Why Engineers Choose V-Ctrl
Electrical Isolation
Complete separation between source and load.
Harmonic Mitigation
Reduces harmonic currents from non-linear loads.
Improved Power Quality
Minimizes noise spikes and transients.
High Efficiency
Low losses for better performance and savings.
Low Noise Operation
Quieter operation for sensitive environments.
Continuous Duty Design
Built for 24/7 reliable and stable performance.
Technical Specifications
Detailed electrical and performance specifications of Isolation & K-Rated Transformers
Electrical Specifications
- System Connections: Delta / Star
- Input Voltage: 415V AC, 3 Phase
- Output Voltage: 415V / 200V AC, 3 Phase
- Ratios: 1:1 and 2:1
- Power Factor: 0.75 Lead to 0.75 Lag
Construction & Design
- Construction Standards: IS 2026 Part I & II, IS 11171
- Type of Execution: Closed Type
- Cooling Type: Natural air / Forced air / Oil cooled (optional)
Performance
- Regulation: Better than 3.5%
- Common Mode Attenuation: 80 dB / 100 dB
- Coupling Capacitance: 0.1 pF for 80 dB
- Leakage Current: Less than 20 micro amps
Operating Conditions
- Operating Temperature: 0°C to 45°C
- Designed for continuous operation
Insulation & Protection
- Di-electric Strength: 3 kV for 60 sec
- Insulation Resistance: > 1000 Mega Ohms
Available Configurations
- 415V AC 3 Phase → 415V AC 3 Phase (3 kVA and above)
- 415V AC 3 Phase → 220V AC 3 Phase (up to 1500 kVA)
- 230V AC 1 Phase → 230V AC 1 Phase (from 1 kVA)
- 230V AC 1 Phase → 110V AC 1 Phase (up to 50 kVA)
Applications
Applications & Industries Served
Designed for sensitive and mission-critical applications requiring fast, precise, and reliable voltage correction.

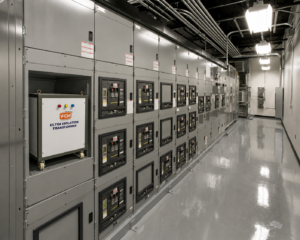

Data Centers & IT Infrastructure
Supports reliable power distribution for servers, networking systems, and large computer installations
Healthcare & Biomedical Equipment
Provides clean and isolated power for sensitive medical and diagnostic devices
Laboratories & R&D
Supports PLCs, robotics, and automation systems with fast and stable voltage control
Telecom & Process Industries
Ideal for telecom networks, oil plants, and industrial processing environments
CNC & Industrial Machinery
Ensures stable and noise-free power for CNC machines and precision-driven industrial equipment
Printing & Textile Machinery
Maintains consistent performance in continuous production environments.
Engineered for Real-World Industrial Applications
Showcasing our servo stabilizers across manufacturing, automation, and critical infrastructure environments.
Frequently Asked Questions
Find answers to common questions about Isolation & K-Rated Transformers, electrical isolation, harmonic mitigation, transformer sizing, power quality, and application suitability.
What is an Isolation Transformer?
An Isolation Transformer transfers electrical power from a source to a load while providing galvanic isolation, meaning there is no direct electrical connection between the primary (input) and secondary (output) windings. It uses electromagnetic induction through a common core to pass power, blocking DC components, noise, and fault currents from reaching the connected equipment.
The primary-to-secondary ratio is typically 1:1, so the output voltage equals the input voltage, although step-up and step-down configurations such as 2:1 or 1:2 are also available.
How does an Isolation Transformer improve electrical safety?
Isolation Transformers create complete electrical separation between the incoming supply and connected equipment.
This separation helps:
- Reduce electrical shock hazards
- Limit fault current propagation
- Improve equipment protection
- Reduce risk during maintenance activities
They are widely used wherever electrical safety is a critical requirement.
What is the difference between an Isolation Transformer and a Servo Voltage Stabilizer?
An Isolation Transformer provides electrical isolation and noise reduction.
A Servo Voltage Stabilizer regulates voltage fluctuations.
An Isolation Transformer does not correct voltage variations, while a Servo Stabilizer does not provide galvanic isolation.
Many installations use both products together.
When should I choose an Isolation Transformer instead of a Voltage Stabilizer?
Choose an Isolation Transformer when your primary concern is:
- Electrical isolation
- Ground loop elimination
- Noise reduction
- Equipment safety
Choose a Voltage Stabilizer when the primary concern is voltage fluctuation.
How do I determine the KVA rating I need?
Sum the total rated wattage of all equipment to be connected, add 20–25% for future expansion, and divide by the power factor to determine the required KVA rating.
For loads with high inrush currents, such as motors and UPS systems, additional capacity may be required.
What is a K-Rated Transformer?
A K-Rated Transformer is a specially designed transformer intended to handle non-linear loads that generate harmonic currents. The K-Factor rating indicates how well the transformer can tolerate harmonic heating without exceeding its thermal limits.
A standard transformer (K-1) is designed for purely sinusoidal (linear) loads. Higher K-Factor ratings such as K-4, K-7, K-13, and K-20 indicate increasing ability to handle harmonic-rich currents without overheating or premature failure.
Which loads require a K-Rated Transformer?
Any load that draws non-sinusoidal current can benefit from a K-Rated Transformer.
Common examples include:
- Computers and servers
- Data center infrastructure
- Variable Frequency Drives (VFDs)
- Variable Speed Drives (VSDs)
- UPS systems
- Electronic ballasts
- LED lighting systems
- Welding equipment
- Arc furnaces
- Medical imaging systems
- Telecommunication equipment
- Rectifier systems
Why choose V-Ctrl Isolation & K-Rated Transformers?
V-Ctrl Isolation Transformers are engineered to provide:
- Reliable galvanic isolation
- Improved electrical safety
- Reduced electrical noise
- Enhanced equipment protection
- Long-term reliability
across industrial, healthcare, commercial, and data center applications.
V-Ctrl K-Rated Transformers are designed to withstand harmonic-rich environments while delivering reliable thermal performance, electrical isolation, and long service life.
Need More Answers?
Explore our complete Isolation & K-Rated Transformers Knowledge Base covering installation, maintenance, troubleshooting, sizing, and application guidance.
Ensure Clean, Reliable Power for Your Critical Systems
Talk to our experts to select the right isolation or K-rated transformer based on your load, environment, and power quality requirements.
